CTD Cast Details

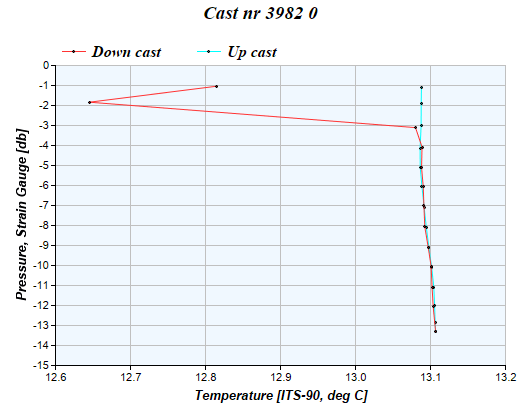

Cast nr 3982 taken on 2016-10-26 at 51°18'30.3", 2°51'4.8"
NOTE:
The CTD casts where processed with Seasoft following the Seabird guidelines for the SBE19 and SBE19plus.
The 'flag' column in the following table is the QC flag for each scan generated during the several processing steps. The scans marked good have a flag of 0.0000e+00. Missing values are marked with -9.990e-29.
Legend
| prdM | Pressure, Strain Gauge [db] |
|---|---|
| tv290C | Temperature [ITS-90, deg C] |
| c0uS/cm | Conductivity [uS/cm] |
| obs3+ | OBS, D & A 3plus [NTU] |
| depSM | Depth [salt water, m] |
| sbeox0Mg/L | Oxygen, SBE 43 [mg/l] |
| sbeox0PS | Oxygen, SBE 43 [% saturation] |
| ph | pH |
| orp | Oxidation Reduction Potential [mV] |
| altM | Altimeter [m] |
| par | PAR/Irradiance, Biospherical/Licor |
| nbin | number of scans per bin |
| sal00 | Salinity, Practical [PSU] |
| density00 | Density [density, kg/m^3] |
| svCM | Sound Velocity [Chen-Millero, m/s] |
| flag | flag |
Data
| prdM | tv290C | c0uS/cm | obs3+ | depSM | sbeox0Mg/L | sbeox0PS | ph | orp | altM | par | nbin | sal00 | density00 | svCM | flag |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.034 | 12.8153 | 3.5965e+04 | 9.5316 | 1.000 | 11.4226 | 121.538 | 6.835 | -482.8447 | 126.57 | 6.4499e+01 | 7 | 30.4243 | 1022.8909 | 1494.17 | 0.0000e+00 |
| 1.835 | 12.6454 | 3.4720e+04 | 8.7744 | 2.000 | 11.3395 | 123.036 | 6.840 | -481.3665 | 134.90 | 1.0314e+01 | 4 | 29.3894 | 1022.1258 | 1492.38 | 0.0000e+00 |
| 3.106 | 13.0800 | 3.8217e+04 | 8.9446 | 3.000 | 7.6603 | 88.914 | 7.237 | -478.8862 | 121.17 | 5.7724e+00 | 9 | 32.3224 | 1024.3176 | 1497.34 | 0.0000e+00 |
| 4.077 | 13.0887 | 3.8290e+04 | 8.9167 | 4.000 | 7.5753 | 88.144 | 7.249 | -478.1361 | 110.92 | 1.1658e+00 | 8 | 32.3834 | 1024.3674 | 1497.46 | 0.0000e+00 |
| 5.109 | 13.0881 | 3.8290e+04 | 8.9119 | 5.000 | 7.5591 | 87.957 | 7.253 | -479.5537 | 100.68 | 3.5347e-02 | 7 | 32.3835 | 1024.3722 | 1497.47 | 0.0000e+00 |
| 6.058 | 13.0903 | 3.8292e+04 | 9.2863 | 6.000 | 7.5310 | 87.632 | 7.255 | -480.6217 | 91.39 | -1.574e-03 | 5 | 32.3831 | 1024.3757 | 1497.50 | 0.0000e+00 |
| 6.994 | 13.0912 | 3.8293e+04 | 9.3443 | 7.000 | 7.5280 | 87.602 | 7.258 | -481.2716 | 80.91 | 1.0000e-12 | 7 | 32.3829 | 1024.3796 | 1497.51 | 0.0000e+00 |
| 8.071 | 13.0924 | 3.8295e+04 | 9.4063 | 8.000 | 7.5299 | 87.633 | 7.262 | -481.3171 | 70.56 | 1.0000e-12 | 8 | 32.3833 | 1024.3845 | 1497.54 | 0.0000e+00 |
| 9.077 | 13.0969 | 3.8299e+04 | 10.2585 | 9.000 | 7.5414 | 87.769 | 7.272 | -481.5756 | 61.73 | 1.0000e-12 | 7 | 32.3828 | 1024.3878 | 1497.57 | 0.0000e+00 |
| 10.030 | 13.1008 | 3.8302e+04 | 16.4105 | 10.000 | 7.5246 | 87.575 | 7.281 | -481.8186 | 51.46 | 1.0000e-12 | 10 | 32.3819 | 1024.3906 | 1497.60 | 0.0000e+00 |
| 11.082 | 13.1021 | 3.8303e+04 | 20.3979 | 11.000 | 7.5260 | 87.592 | 7.303 | -481.8779 | 41.39 | 1.0000e-12 | 10 | 32.3814 | 1024.3946 | 1497.62 | 0.0000e+00 |
| 12.068 | 13.1036 | 3.8304e+04 | 21.9583 | 12.000 | 7.5428 | 87.789 | 7.351 | -482.5461 | 31.45 | 1.0000e-12 | 10 | 32.3806 | 1024.3982 | 1497.64 | 0.0000e+00 |
| -9.990e-29 | -9.990e-29 | -9.990e-29 | -9.990e-29 | 13.000 | -9.990e-29 | -9.990e-29 | -9.990e-29 | -9.990e-29 | -9.990e-29 | -9.990e-29 | 0 | -9.990e-29 | -9.990e-29 | -9.990e-29 | -9.990e-29 |
| 13.308 | 13.1068 | 3.8308e+04 | 34.0456 | 14.000 | 7.5309 | 87.649 | 7.623 | -483.0924 | 17.74 | 1.0000e-12 | 2 | 32.3812 | 1024.4035 | 1497.67 | 0.0000e+00 |
| 12.832 | 13.1062 | 3.8306e+04 | 36.0850 | 13.000 | 7.5345 | 87.685 | 7.624 | -483.7677 | 23.38 | 1.0000e-12 | 5 | 32.3800 | 1024.4006 | 1497.66 | 0.0000e+00 |
| 12.018 | 13.1055 | 3.8305e+04 | 31.2540 | 12.000 | 7.5490 | 87.849 | 7.626 | -484.5081 | 33.04 | 1.0000e-12 | 4 | 32.3800 | 1024.3970 | 1497.64 | 0.0000e+00 |
| 11.087 | 13.1044 | 3.8305e+04 | 20.2192 | 11.000 | 7.5364 | 87.697 | 7.626 | -484.8933 | 42.27 | 1.0000e-12 | 5 | 32.3813 | 1024.3941 | 1497.62 | 0.0000e+00 |
| 10.102 | 13.1016 | 3.8302e+04 | 13.8763 | 10.000 | 7.5285 | 87.600 | 7.627 | -485.3453 | 52.46 | 1.0000e-12 | 4 | 32.3812 | 1024.3902 | 1497.60 | 0.0000e+00 |
| 9.117 | 13.0979 | 3.8300e+04 | 10.1463 | 9.000 | 7.5528 | 87.880 | 7.630 | -485.7681 | 63.03 | 1.0000e-12 | 5 | 32.3829 | 1024.3878 | 1497.57 | 0.0000e+00 |
| 8.116 | 13.0945 | 3.8296e+04 | 8.9982 | 8.000 | 7.5697 | 88.070 | 7.632 | -486.3438 | 72.83 | 1.0000e-12 | 5 | 32.3824 | 1024.3836 | 1497.54 | 0.0000e+00 |
| 7.088 | 13.0915 | 3.8293e+04 | 8.7258 | 7.000 | 7.5654 | 88.019 | 7.633 | -486.6854 | 82.17 | 1.0000e-12 | 6 | 32.3826 | 1024.3797 | 1497.52 | 0.0000e+00 |
| 6.053 | 13.0886 | 3.8291e+04 | 8.8162 | 6.000 | 7.5594 | 87.950 | 7.634 | -486.8934 | 92.08 | 1.0000e-12 | 5 | 32.3836 | 1024.3764 | 1497.49 | 0.0000e+00 |
| 5.098 | 13.0863 | 3.8288e+04 | 8.9361 | 5.000 | 7.5625 | 87.989 | 7.634 | -487.1217 | 102.05 | 1.9398e-01 | 6 | 32.3831 | 1024.3722 | 1497.47 | 0.0000e+00 |
| 4.149 | 13.0861 | 3.8287e+04 | 8.6861 | 4.000 | 7.5740 | 88.122 | 7.635 | -487.1721 | 112.36 | 2.0021e+00 | 6 | 32.3827 | 1024.3677 | 1497.45 | 0.0000e+00 |
| 3.011 | 13.0875 | 3.8288e+04 | 8.8260 | 3.000 | 7.5664 | 88.031 | 7.643 | -487.0488 | 121.87 | 7.8940e+00 | 8 | 32.3829 | 1024.3625 | 1497.44 | 0.0000e+00 |
| 1.889 | 13.0876 | 3.8285e+04 | 9.1049 | 2.000 | 7.7889 | 87.114 | 7.651 | -487.2205 | 131.04 | 3.0553e+01 | 5 | 32.3805 | 1024.3555 | 1497.41 | 0.0000e+00 |
| 1.118 | 13.0879 | 3.8236e+04 | 7.9941 | 1.000 | 8.6376 | 84.798 | 7.649 | -487.2555 | 140.97 | 1.3797e+02 | 6 | 32.3344 | 1024.3163 | 1497.35 | 0.0000e+00 |
