CTD Cast Details

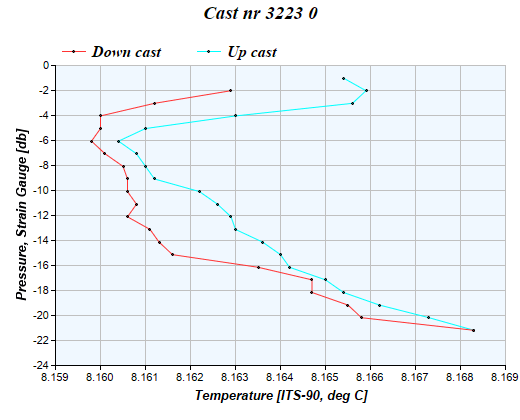

Cast nr 3223 taken on 2014-01-20 at 51°28'15.6", 3°3'30.6"
NOTE:
The CTD casts where processed with Seasoft following the Seabird guidelines for the SBE19 and SBE19plus.
The 'flag' column in the following table is the QC flag for each scan generated during the several processing steps. The scans marked good have a flag of 0.0000e+00. Missing values are marked with -9.990e-29.
Legend
| prdM | Pressure, Strain Gauge [db] |
|---|---|
| tv290C | Temperature [ITS-90, deg C] |
| c0uS/cm | Conductivity [uS/cm] |
| obs3+ | OBS, D & A 3plus [NTU] |
| depSM | Depth [salt water, m], lat |
| sbeox0Mg/L | Oxygen, SBE 43 [mg/l] |
| sbeox0PS | Oxygen, SBE 43 [% saturation] |
| ph | pH |
| orp | Oxidation Reduction Potential [mV] |
| altM | Altimeter [m] |
| par | PAR/Irradiance, Biospherical/Licor |
| cpar | CPAR/Corrected Irradiance [%] |
| spar | SPAR/Surface Irradiance |
| nbin | number of scans per bin |
| sal00 | Salinity, Practical [PSU] |
| density00 | Density [density, Kg/m^3] |
| svCM | Sound Velocity [Chen-Millero, m/s] |
| flag | flag |
Data
| prdM | tv290C | c0uS/cm | obs3+ | depSM | sbeox0Mg/L | sbeox0PS | ph | orp | altM | par | cpar | spar | nbin | sal00 | density00 | svCM | flag |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.017 | 8.1629 | 3.5118e+04 | 34.3971 | 2.000 | 8.61361 | 90.86929 | 7.723 | 150.7275 | 0.98 | 1.4943e-05 | 9.9999e+04 | -5.365e-08 | 2 | 33.6684 | 1026.2132 | 1481.47 | 0.0000e+00 |
| 3.026 | 8.1612 | 3.5116e+04 | 33.8381 | 3.000 | 8.74456 | 92.24613 | 7.716 | 150.6443 | 1.10 | 1.3319e-05 | 9.9999e+04 | 1.1591e-07 | 7 | 33.6674 | 1026.2173 | 1481.48 | 0.0000e+00 |
| 4.035 | 8.1600 | 3.5114e+04 | 34.0245 | 4.000 | 8.83087 | 93.15413 | 7.716 | 150.6213 | 0.93 | 1.7489e-05 | 9.9999e+04 | 2.6288e-06 | 6 | 33.6659 | 1026.2209 | 1481.49 | 0.0000e+00 |
| 5.043 | 8.1600 | 3.5114e+04 | 33.6671 | 5.000 | 8.87066 | 93.57338 | 7.725 | 150.5671 | 1.04 | 2.5301e-05 | 9.9997e+04 | 3.0319e-05 | 4 | 33.6655 | 1026.2251 | 1481.51 | 0.0000e+00 |
| 6.052 | 8.1598 | 3.5115e+04 | 33.8305 | 6.000 | 8.97859 | 94.71166 | 7.724 | 150.4626 | 1.17 | 1.5622e-05 | 9.9982e+04 | 3.2171e-04 | 5 | 33.6663 | 1026.2304 | 1481.52 | 0.0000e+00 |
| 7.061 | 8.1601 | 3.5115e+04 | 34.2847 | 7.000 | 9.06252 | 95.59760 | 7.727 | 150.4381 | 1.22 | 1.6565e-05 | 9.9853e+04 | 2.8761e-03 | 4 | 33.6655 | 1026.2344 | 1481.54 | 0.0000e+00 |
| 8.070 | 8.1605 | 3.5116e+04 | 35.0308 | 8.000 | 9.13898 | 96.40519 | 7.734 | 150.4599 | 1.10 | 3.9722e-05 | 9.8313e+04 | 3.3200e-02 | 5 | 33.6657 | 1026.2391 | 1481.56 | 0.0000e+00 |
| 9.079 | 8.1606 | 3.5117e+04 | 33.7185 | 9.000 | 9.19355 | 96.98097 | 7.741 | 150.4149 | 1.06 | 3.2322e-05 | 8.6652e+04 | 2.6281e-01 | 4 | 33.6662 | 1026.2441 | 1481.58 | 0.0000e+00 |
| 10.088 | 8.1606 | 3.5117e+04 | 33.9633 | 10.000 | 9.27220 | 97.81093 | 7.748 | 150.3518 | 0.89 | 3.8809e-05 | 9.1426e+04 | 1.6881e-01 | 4 | 33.6657 | 1026.2483 | 1481.59 | 0.0000e+00 |
| 11.096 | 8.1608 | 3.5117e+04 | 33.8742 | 11.000 | 9.36432 | 98.78217 | 7.762 | 150.3584 | 0.95 | 3.9996e-05 | 9.9000e+04 | 1.9675e-02 | 4 | 33.6650 | 1026.2523 | 1481.61 | 0.0000e+00 |
| 12.105 | 8.1606 | 3.5116e+04 | 34.8346 | 12.000 | 9.40332 | 99.19196 | 7.777 | 150.3235 | 1.13 | 2.9044e-05 | 9.9893e+04 | 2.0975e-03 | 4 | 33.6637 | 1026.2559 | 1481.62 | 0.0000e+00 |
| 13.114 | 8.1611 | 3.5116e+04 | 35.1168 | 13.000 | 9.45760 | 99.76533 | 7.784 | 150.2527 | 1.28 | 2.0211e-05 | 9.9988e+04 | 2.1482e-04 | 4 | 33.6627 | 1026.2597 | 1481.64 | 0.0000e+00 |
| 14.123 | 8.1613 | 3.5117e+04 | 35.3911 | 14.000 | 9.50179 | 100.23195 | 7.798 | 150.2064 | 1.38 | 9.9494e-06 | 9.9997e+04 | 4.6155e-05 | 5 | 33.6631 | 1026.2646 | 1481.66 | 0.0000e+00 |
| 15.132 | 8.1616 | 3.5118e+04 | 37.0483 | 15.000 | 9.47215 | 99.92074 | 7.806 | 150.1800 | 1.27 | 1.9844e-05 | 9.9999e+04 | 6.3886e-06 | 5 | 33.6634 | 1026.2694 | 1481.68 | 0.0000e+00 |
| 16.140 | 8.1635 | 3.5121e+04 | 37.6273 | 16.000 | 9.45042 | 99.69750 | 7.816 | 150.1098 | 1.03 | 1.9429e-05 | 9.9999e+04 | 4.9642e-07 | 5 | 33.6643 | 1026.2744 | 1481.70 | 0.0000e+00 |
| 17.149 | 8.1647 | 3.5124e+04 | 36.8564 | 17.000 | 9.42757 | 99.45913 | 7.821 | 150.0991 | 0.94 | 1.4418e-05 | 9.9999e+04 | 2.3101e-08 | 4 | 33.6659 | 1026.2801 | 1481.72 | 0.0000e+00 |
| 18.158 | 8.1647 | 3.5124e+04 | 36.8744 | 18.000 | 9.39295 | 99.09381 | 7.823 | 149.9957 | 0.88 | 1.2185e-05 | 9.9999e+04 | 6.8199e-10 | 5 | 33.6654 | 1026.2843 | 1481.74 | 0.0000e+00 |
| 19.167 | 8.1655 | 3.5127e+04 | 36.2750 | 19.000 | 9.34992 | 98.64252 | 7.830 | 149.9566 | 0.83 | 7.5556e-06 | 9.9999e+04 | 1.1894e-10 | 6 | 33.6673 | 1026.2903 | 1481.76 | 0.0000e+00 |
| 20.176 | 8.1658 | 3.5128e+04 | 38.4202 | 20.000 | 9.27067 | 97.80676 | 7.830 | 149.9238 | 0.84 | 1.0035e-05 | 9.9999e+04 | -2.066e-11 | 5 | 33.6676 | 1026.2951 | 1481.78 | 0.0000e+00 |
| 21.185 | 8.1683 | 3.5135e+04 | 40.0432 | 21.000 | 8.57696 | 90.49556 | 7.691 | 149.3686 | 0.96 | 5.5172e-05 | 9.9999e+04 | -1.406e-12 | 4 | 33.6722 | 1026.3030 | 1481.81 | 0.0000e+00 |
| 20.176 | 8.1673 | 3.5131e+04 | 39.9523 | 20.000 | 8.57304 | 90.45060 | 7.695 | 149.4705 | 0.96 | 3.2974e-05 | 9.9999e+04 | -5.817e-31 | 5 | 33.6694 | 1026.2963 | 1481.79 | 0.0000e+00 |
| 19.167 | 8.1662 | 3.5128e+04 | 38.3478 | 19.000 | 8.53367 | 90.03227 | 7.686 | 149.4422 | 1.18 | 2.1114e-05 | 9.9999e+04 | 8.6965e-32 | 5 | 33.6677 | 1026.2905 | 1481.77 | 0.0000e+00 |
| 18.158 | 8.1654 | 3.5126e+04 | 38.3162 | 18.000 | 8.54226 | 90.12072 | 7.667 | 149.3904 | 1.25 | 1.9410e-05 | 9.9999e+04 | 1.6027e-32 | 5 | 33.6669 | 1026.2854 | 1481.75 | 0.0000e+00 |
| 17.149 | 8.1650 | 3.5125e+04 | 38.4570 | 17.000 | 8.53344 | 90.02635 | 7.646 | 149.3235 | 1.84 | 2.2887e-05 | 9.9999e+04 | 1.4514e-33 | 5 | 33.6667 | 1026.2806 | 1481.73 | 0.0000e+00 |
| 16.140 | 8.1642 | 3.5122e+04 | 36.9358 | 16.000 | 8.52599 | 89.94589 | 7.632 | 149.2721 | 1.59 | 1.2759e-05 | 9.9999e+04 | 9.1574e-35 | 5 | 33.6647 | 1026.2746 | 1481.71 | 0.0000e+00 |
| 15.132 | 8.1640 | 3.5107e+04 | 38.5474 | 15.000 | 8.51539 | 89.83341 | 7.623 | 149.2839 | 1.26 | 9.0931e-06 | 9.9999e+04 | 8.3782e-36 | 5 | 33.6494 | 1026.2580 | 1481.67 | 0.0000e+00 |
| 14.123 | 8.1636 | 3.5038e+04 | 37.3822 | 14.000 | 8.50140 | 89.60195 | 7.613 | 149.2387 | 1.31 | 3.9578e-06 | 9.9999e+04 | 1.0221e-36 | 4 | 33.5768 | 1026.1965 | 1481.56 | 0.0000e+00 |
| 13.114 | 8.1630 | 3.5081e+04 | 38.0915 | 13.000 | 8.46239 | 89.25480 | 7.606 | 149.2693 | 1.23 | 6.0188e-06 | 9.9999e+04 | 1.1314e-37 | 4 | 33.6236 | 1026.2287 | 1481.60 | 0.0000e+00 |
| 12.105 | 8.1629 | 3.5100e+04 | 37.6897 | 12.000 | 8.47258 | 89.37631 | 7.593 | 149.2843 | 1.16 | 2.5013e-05 | 9.9999e+04 | 1.1611e-38 | 4 | 33.6444 | 1026.2405 | 1481.61 | 0.0000e+00 |
| 11.096 | 8.1626 | 3.5113e+04 | 38.7086 | 11.000 | 8.47349 | 89.38807 | 7.577 | 149.3003 | 1.08 | 2.5363e-05 | 9.9999e+04 | 1.3484e-39 | 6 | 33.6590 | 1026.2474 | 1481.61 | 0.0000e+00 |
| 10.088 | 8.1622 | 3.5116e+04 | 37.1622 | 10.000 | 8.51147 | 89.78745 | 7.565 | 149.2009 | 0.82 | 3.4636e-05 | 9.9999e+04 | 6.4006e-41 | 8 | 33.6631 | 1026.2460 | 1481.60 | 0.0000e+00 |
| 9.079 | 8.1612 | 3.5115e+04 | 35.7738 | 9.000 | 8.47984 | 89.45177 | 7.555 | 149.2294 | 0.81 | 1.2050e-05 | 9.9999e+04 | 1.7332e-42 | 8 | 33.6635 | 1026.2418 | 1481.58 | 0.0000e+00 |
| 8.070 | 8.1610 | 3.5114e+04 | 36.6844 | 8.000 | 8.47062 | 89.35441 | 7.552 | 149.0512 | 0.93 | 1.0866e-05 | 9.9999e+04 | 5.1890e-44 | 9 | 33.6631 | 1026.2369 | 1481.56 | 0.0000e+00 |
| 7.062 | 8.1608 | 3.5113e+04 | 36.4483 | 7.000 | 8.50481 | 89.71449 | 7.533 | 149.0503 | 0.90 | 3.5172e-05 | 9.9999e+04 | 1.0578e-45 | 1 | 33.6627 | 1026.2321 | 1481.54 | 0.0000e+00 |
| 6.053 | 8.1604 | 3.5114e+04 | 36.6071 | 6.000 | 8.61843 | 90.91281 | 7.538 | 148.2193 | 1.06 | 1.4253e-05 | 9.9999e+04 | 3.8143e-11 | 8 | 33.6646 | 1026.2290 | 1481.53 | 0.0000e+00 |
| 5.044 | 8.1610 | 3.5114e+04 | 35.3210 | 5.000 | 8.55696 | 90.26594 | 7.538 | 147.9087 | 1.07 | 1.9156e-05 | 9.9999e+04 | 1.1036e-09 | 6 | 33.6645 | 1026.2242 | 1481.51 | 0.0000e+00 |
| 4.035 | 8.1630 | 3.5114e+04 | 34.5368 | 4.000 | 8.49145 | 89.57913 | 7.543 | 147.8612 | 1.16 | 2.7881e-05 | 9.9999e+04 | 2.3510e-08 | 6 | 33.6631 | 1026.2182 | 1481.50 | 0.0000e+00 |
| 3.026 | 8.1656 | 3.5111e+04 | 35.4416 | 3.000 | 8.47531 | 89.40930 | 7.545 | 147.8948 | 1.33 | 1.8792e-05 | 9.9999e+04 | 5.0400e-07 | 6 | 33.6579 | 1026.2091 | 1481.49 | 0.0000e+00 |
| 2.017 | 8.1659 | 3.5029e+04 | 34.8515 | 2.000 | 8.48435 | 89.47308 | 7.558 | 147.7744 | 1.59 | 4.0278e-04 | 9.9999e+04 | 2.9921e-04 | 8 | 33.5707 | 1026.1361 | 1481.36 | 0.0000e+00 |
| 1.009 | 8.1654 | 3.2944e+04 | 94.9803 | 1.000 | 8.61895 | 89.24175 | 7.558 | 148.2307 | 6.73 | 1.0485e-02 | 9.9999e+04 | 8.5624e-03 | 6 | 31.3616 | 1024.3987 | 1478.61 | 0.0000e+00 |
