CTD Cast Details

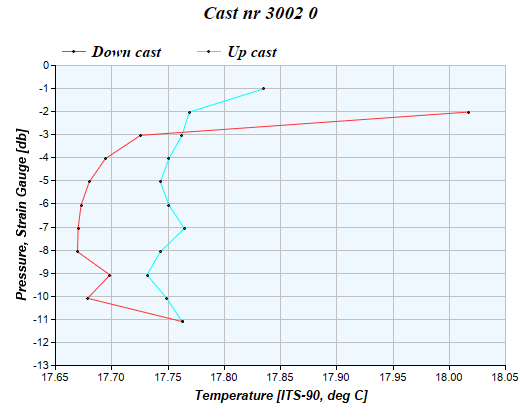

Cast nr 3002 taken on 2013-07-22 at 51°20'6.1", 2°30'1.2"
NOTE:
The CTD casts where processed with Seasoft following the Seabird guidelines for the SBE19 and SBE19plus.
The 'flag' column in the following table is the QC flag for each scan generated during the several processing steps. The scans marked good have a flag of 0.0000e+00. Missing values are marked with -9.990e-29.
Legend
| prdM | Pressure, Strain Gauge [db] |
|---|---|
| tv290C | Temperature [ITS-90, deg C] |
| c0uS/cm | Conductivity [uS/cm] |
| obs3+ | OBS, D & A 3plus [NTU] |
| depSM | Depth [salt water, m], lat |
| sbeox0Mg/L | Oxygen, SBE 43 [mg/l] |
| sbeox0PS | Oxygen, SBE 43 [% saturation] |
| ph | pH |
| orp | Oxidation Reduction Potential [mV] |
| altM | Altimeter [m] |
| par | PAR/Irradiance, Biospherical/Licor |
| cpar | CPAR/Corrected Irradiance [%] |
| spar | SPAR/Surface Irradiance |
| nbin | number of scans per bin |
| sal00 | Salinity, Practical [PSU] |
| density00 | Density [density, Kg/m^3] |
| svCM | Sound Velocity [Chen-Millero, m/s] |
| flag | flag |
Data
| prdM | tv290C | c0uS/cm | obs3+ | depSM | sbeox0Mg/L | sbeox0PS | ph | orp | altM | par | cpar | spar | nbin | sal00 | density00 | svCM | flag |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.017 | 18.0174 | 4.3980e+04 | 12.3624 | 2.000 | 8.93951 | 115.29113 | 8.993 | 108.0538 | 4.01 | 3.2819e+02 | 1.4728e+01 | 2.2283e+03 | 5 | 33.3512 | 1024.0143 | 1514.00 | 0.0000e+00 |
| 3.026 | 17.7256 | 4.3693e+04 | 12.0033 | 3.000 | 7.94712 | 101.94708 | 8.994 | 108.0390 | 10.42 | 1.9167e+02 | 8.6041e+00 | 2.2279e+03 | 6 | 33.3454 | 1024.0851 | 1513.15 | 0.0000e+00 |
| 4.035 | 17.6944 | 4.3633e+04 | 9.6471 | 4.000 | 6.82273 | 87.47726 | 8.995 | 108.1816 | 10.65 | 1.0824e+02 | 4.8610e+00 | 2.2252e+03 | 4 | 33.3193 | 1024.0772 | 1513.05 | 0.0000e+00 |
| 5.044 | 17.6800 | 4.3599e+04 | 11.5241 | 5.000 | 6.56969 | 84.20150 | 8.995 | 108.1824 | 10.07 | 6.5503e+01 | 2.9521e+00 | 2.2185e+03 | 5 | 33.3017 | 1024.0716 | 1513.00 | 0.0000e+00 |
| 6.052 | 17.6727 | 4.3577e+04 | 11.4147 | 6.000 | 6.35829 | 81.47488 | 8.994 | 108.1648 | 9.46 | 3.8218e+01 | 1.7204e+00 | 2.2232e+03 | 4 | 33.2886 | 1024.0677 | 1512.98 | 0.0000e+00 |
| 7.061 | 17.6701 | 4.3571e+04 | 15.6270 | 7.000 | 6.40510 | 82.07410 | 8.994 | 108.1672 | 8.74 | 2.2730e+01 | 1.0193e+00 | 2.2306e+03 | 5 | 33.2852 | 1024.0702 | 1512.99 | 0.0000e+00 |
| 8.070 | 17.6696 | 4.3578e+04 | 17.0266 | 8.000 | 6.42623 | 82.34989 | 8.994 | 107.9230 | 7.04 | 1.2538e+01 | 5.6229e-01 | 2.2295e+03 | 6 | 33.2912 | 1024.0794 | 1513.01 | 0.0000e+00 |
| 9.079 | 17.6984 | 4.3612e+04 | 14.6888 | 9.000 | 6.34293 | 81.32833 | 8.995 | 107.7035 | 1.91 | 6.8697e+00 | 3.0860e-01 | 2.2262e+03 | 9 | 33.2963 | 1024.0808 | 1513.12 | 0.0000e+00 |
| 10.088 | 17.6786 | 4.3600e+04 | 13.4542 | 10.000 | 6.23368 | 79.89628 | 8.994 | 107.6687 | 1.79 | 4.1210e+00 | 1.8467e-01 | 2.2315e+03 | 8 | 33.3019 | 1024.0943 | 1513.08 | 0.0000e+00 |
| 11.096 | 17.7625 | 4.3619e+04 | 10.5000 | 11.000 | 4.47313 | 57.40908 | 8.992 | 108.4124 | 4.34 | 1.2378e+00 | 5.5391e-02 | 2.2332e+03 | 6 | 33.2491 | 1024.0381 | 1513.28 | 0.0000e+00 |
| 10.088 | 17.7489 | 4.3593e+04 | 15.1621 | 10.000 | 4.39047 | 56.32616 | 8.991 | 108.5417 | 4.41 | 2.6984e+00 | 1.2080e-01 | 2.2336e+03 | 7 | 33.2384 | 1024.0287 | 1513.22 | 0.0000e+00 |
| 9.079 | 17.7314 | 4.3583e+04 | 17.0594 | 9.000 | 4.40663 | 56.51727 | 8.991 | 108.6568 | 5.09 | 4.9260e+00 | 2.2032e-01 | 2.2354e+03 | 5 | 33.2446 | 1024.0332 | 1513.15 | 0.0000e+00 |
| 8.070 | 17.7432 | 4.3591e+04 | 16.4716 | 8.000 | 4.37208 | 56.08855 | 8.991 | 108.7499 | 6.28 | 8.9141e+00 | 3.9881e-01 | 2.2357e+03 | 5 | 33.2421 | 1024.0240 | 1513.17 | 0.0000e+00 |
| 7.061 | 17.7646 | 4.3597e+04 | 17.4068 | 7.000 | 4.46339 | 57.27714 | 8.990 | 108.7483 | 7.28 | 1.4957e+01 | 6.6952e-01 | 2.2340e+03 | 4 | 33.2301 | 1024.0052 | 1513.20 | 0.0000e+00 |
| 6.052 | 17.7508 | 4.3594e+04 | 16.6842 | 6.000 | 4.76347 | 61.11466 | 8.989 | 108.8556 | 8.27 | 2.4969e+01 | 1.1175e+00 | 2.2347e+03 | 4 | 33.2392 | 1024.0111 | 1513.15 | 0.0000e+00 |
| 5.044 | 17.7432 | 4.3597e+04 | 13.9873 | 5.000 | 5.03447 | 64.58813 | 8.989 | 108.9477 | 9.11 | 4.1831e+01 | 1.8737e+00 | 2.2324e+03 | 4 | 33.2483 | 1024.0154 | 1513.13 | 0.0000e+00 |
| 4.035 | 17.7508 | 4.3614e+04 | 13.5371 | 4.000 | 5.15990 | 66.21206 | 8.988 | 109.0289 | 9.54 | 7.0224e+01 | 3.1425e+00 | 2.2345e+03 | 4 | 33.2570 | 1024.0158 | 1513.14 | 0.0000e+00 |
| 3.027 | 17.7624 | 4.3618e+04 | 11.4013 | 3.000 | 5.90740 | 75.82515 | 8.988 | 108.9663 | 8.96 | 1.1772e+02 | 5.2677e+00 | 2.2353e+03 | 5 | 33.2513 | 1024.0042 | 1513.15 | 0.0000e+00 |
| 2.018 | 17.7690 | 4.3534e+04 | 11.3753 | 2.000 | 7.07917 | 90.87823 | 8.989 | 108.9414 | 4.32 | 2.0512e+02 | 9.2004e+00 | 2.2315e+03 | 4 | 33.1747 | 1023.9395 | 1513.07 | 0.0000e+00 |
| 1.009 | 17.8353 | 4.1084e+04 | 21.7626 | 1.000 | 7.82131 | 98.28370 | 8.987 | 110.1399 | 3.65 | 7.8073e+02 | 3.5115e+01 | 2.2270e+03 | 7 | 31.0471 | 1022.2911 | 1510.83 | 0.0000e+00 |
