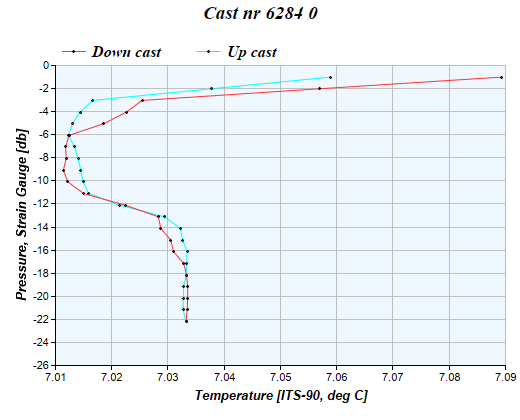

CTD Cast Details
Cast nr 6284 taken on 2023-03-15 at 51°34'47.6", 2°59'36.6"
NOTE:
The CTD casts where processed with Seasoft following the Seabird guidelines for the SBE19 and SBE19plus.
The 'flag' column in the following table is the QC flag for each scan generated during the several processing steps. The scans marked good have a flag of 0.0000e+00. Missing values are marked with -9.990e-29.
Legend
| prdM | Pressure, Strain Gauge [db] |
|---|---|
| t090C | Temperature [ITS-90, deg C] |
| c0uS/cm | Conductivity [uS/cm] |
| obs3+ | OBS, D & A 3plus [NTU] |
| altM | Altimeter [m] |
| par | PAR/Irradiance, Biospherical/Licor |
| flECO-AFL | Fluorescence, WET Labs ECO-AFL/FL [mg/m^3] |
| turbWETntu0 | Turbidity, WET Labs ECO [NTU] |
| depSM | Depth [salt water, m], lat |
| sbeox0Mg/L | Oxygen, SBE 43 [mg/l], WS |
| sbeox0PS | Oxygen, SBE 43 [% saturation], WS |
| sal00 | Salinity, Practical [PSU] |
| svCM | Sound Velocity [Chen-Millero, m/s] |
| density00 | Density [density, kg/m^3] |
| nbin | number of scans per bin |
| flag | flag |
Data
| prdM | t090C | c0uS/cm | obs3+ | altM | par | flECO-AFL | turbWETntu0 | depSM | sbeox0Mg/L | sbeox0PS | sal00 | svCM | density00 | nbin | flag |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.009 | 7.0892 | 3.3320e+04 | 39.3345 | -0.52 | 5.0974e+02 | 1.8016 | 2.4459 | 1.000 | 9.7710 | 99.955 | 32.7616 | 1476.22 | 1025.6487 | 11 | 0.0000e+00 |
| 2.018 | 7.0569 | 3.3820e+04 | 2.4667 | -0.54 | 4.6715e+02 | 2.3096 | 1.0216 | 2.000 | 9.0013 | 92.398 | 33.3338 | 1476.83 | 1026.1079 | 8 | 0.0000e+00 |
| 3.026 | 7.0254 | 3.3863e+04 | 0.7555 | -0.70 | 3.8842e+02 | 3.1992 | 1.3346 | 3.000 | 8.8283 | 90.604 | 33.4112 | 1476.82 | 1026.1778 | 7 | 0.0000e+00 |
| 4.035 | 7.0226 | 3.3609e+04 | 0.8578 | -0.71 | 2.7516e+02 | 4.2826 | 1.3192 | 4.000 | 9.9724 | 102.144 | 33.1353 | 1476.48 | 1025.9656 | 9 | 0.0000e+00 |
| 5.044 | 7.0186 | 3.3519e+04 | 0.6018 | -0.66 | 2.1887e+02 | 4.7490 | 1.2331 | 5.000 | 10.1893 | 104.302 | 33.0395 | 1476.36 | 1025.8953 | 5 | 0.0000e+00 |
| 6.053 | 7.0124 | 3.3529e+04 | 0.8838 | -0.70 | 1.4144e+02 | 5.7571 | 1.4383 | 6.000 | 10.1575 | 103.974 | 33.0563 | 1476.37 | 1025.9140 | 5 | 0.0000e+00 |
| 7.062 | 7.0118 | 3.3530e+04 | 0.8180 | -0.79 | 8.7088e+01 | 6.4268 | 1.4597 | 7.000 | 10.1677 | 104.077 | 33.0573 | 1476.39 | 1025.9195 | 6 | 0.0000e+00 |
| 8.070 | 7.0119 | 3.3528e+04 | 0.8968 | -0.78 | 6.2329e+01 | 6.1462 | 1.5909 | 8.000 | 10.1551 | 103.946 | 33.0549 | 1476.40 | 1025.9222 | 6 | 0.0000e+00 |
| 9.079 | 7.0114 | 3.3532e+04 | 0.9152 | -0.78 | 3.7178e+01 | 7.4096 | 1.7045 | 9.000 | 10.1484 | 103.880 | 33.0596 | 1476.42 | 1025.9307 | 5 | 0.0000e+00 |
| 10.088 | 7.0122 | 3.3539e+04 | 0.9496 | -0.80 | 2.5909e+01 | 6.7808 | 1.4940 | 10.000 | 10.1357 | 103.756 | 33.0652 | 1476.45 | 1025.9396 | 5 | 0.0000e+00 |
| 11.097 | 7.0150 | 3.3549e+04 | 0.9828 | -0.80 | 1.8963e+01 | 5.9721 | 1.5442 | 11.000 | 10.1268 | 103.677 | 33.0737 | 1476.49 | 1025.9506 | 6 | 0.0000e+00 |
| 12.106 | 7.0224 | 3.3570e+04 | 0.8234 | -0.77 | 1.3067e+01 | 6.8176 | 1.6109 | 12.000 | 10.1112 | 103.546 | 33.0887 | 1476.55 | 1025.9660 | 4 | 0.0000e+00 |
| 13.115 | 7.0283 | 3.3586e+04 | 0.8035 | -0.77 | 8.4339e+00 | 7.3038 | 1.3284 | 13.000 | 10.1038 | 103.491 | 33.1005 | 1476.61 | 1025.9791 | 5 | 0.0000e+00 |
| 14.123 | 7.0287 | 3.3589e+04 | 0.9029 | -0.79 | 5.8024e+00 | 7.2404 | 1.5550 | 14.000 | 10.0956 | 103.410 | 33.1018 | 1476.63 | 1025.9848 | 5 | 0.0000e+00 |
| 15.133 | 7.0305 | 3.3595e+04 | 0.8464 | -0.81 | 4.1725e+00 | 7.6156 | 1.5064 | 15.000 | 10.1040 | 103.503 | 33.1069 | 1476.66 | 1025.9932 | 6 | 0.0000e+00 |
| 16.142 | 7.0310 | 3.3596e+04 | 1.0009 | -0.76 | 2.8296e+00 | 6.4623 | 1.5184 | 16.000 | 10.1110 | 103.577 | 33.1071 | 1476.67 | 1025.9979 | 4 | 0.0000e+00 |
| 17.150 | 7.0328 | 3.3600e+04 | 0.8432 | -0.76 | 1.8553e+00 | 6.3682 | 1.7325 | 17.000 | 10.1038 | 103.508 | 33.1091 | 1476.70 | 1026.0038 | 5 | 0.0000e+00 |
| 18.159 | 7.0333 | 3.3601e+04 | 1.0297 | -0.87 | 1.3610e+00 | 6.0808 | 1.6189 | 18.000 | 10.1062 | 103.534 | 33.1093 | 1476.72 | 1026.0086 | 11 | 0.0000e+00 |
| 19.168 | 7.0335 | 3.3605e+04 | 1.1637 | -0.89 | 9.5118e-01 | 6.9122 | 1.5324 | 19.000 | 10.1055 | 103.530 | 33.1124 | 1476.74 | 1026.0156 | 7 | 0.0000e+00 |
| 20.177 | 7.0335 | 3.3607e+04 | 1.1874 | -0.90 | 6.4916e-01 | 7.1854 | 1.5628 | 20.000 | 10.0927 | 103.399 | 33.1141 | 1476.76 | 1026.0216 | 8 | 0.0000e+00 |
| 21.186 | 7.0334 | 3.3607e+04 | 0.9177 | -0.92 | 4.1971e-01 | 7.2236 | 1.6371 | 21.000 | 10.1085 | 103.561 | 33.1138 | 1476.78 | 1026.0260 | 7 | 0.0000e+00 |
| 22.195 | 7.0332 | 3.3603e+04 | 1.3055 | -0.92 | 2.9882e-01 | 4.9651 | 1.9281 | 22.000 | 10.0981 | 103.452 | 33.1098 | 1476.78 | 1026.0275 | 7 | 0.0000e+00 |
| 21.186 | 7.0327 | 3.3606e+04 | 1.2662 | -0.88 | 4.4329e-01 | 7.7480 | 1.8139 | 21.000 | 10.1005 | 103.477 | 33.1132 | 1476.77 | 1026.0256 | 7 | 0.0000e+00 |
| 20.177 | 7.0327 | 3.3606e+04 | 1.0424 | -0.90 | 6.4283e-01 | 7.4136 | 1.5216 | 20.000 | 10.0990 | 103.462 | 33.1141 | 1476.76 | 1026.0217 | 6 | 0.0000e+00 |
| 19.168 | 7.0328 | 3.3602e+04 | 0.8809 | -0.91 | 8.4288e-01 | 7.9776 | 1.8332 | 19.000 | 10.1068 | 103.539 | 33.1100 | 1476.73 | 1026.0138 | 6 | 0.0000e+00 |
| 18.159 | 7.0332 | 3.3600e+04 | 0.8812 | -0.90 | 1.1576e+00 | 6.0221 | 1.9696 | 18.000 | 10.1234 | 103.710 | 33.1085 | 1476.72 | 1026.0079 | 4 | 0.0000e+00 |
| 17.150 | 7.0333 | 3.3599e+04 | 1.2378 | -0.86 | 1.7478e+00 | 7.7507 | 1.7839 | 17.000 | 10.1083 | 103.555 | 33.1072 | 1476.70 | 1026.0023 | 5 | 0.0000e+00 |
| 16.141 | 7.0334 | 3.3598e+04 | 1.0386 | -0.86 | 2.5799e+00 | 8.5652 | 1.7098 | 16.000 | 10.1001 | 103.471 | 33.1071 | 1476.68 | 1025.9975 | 4 | 0.0000e+00 |
| 15.132 | 7.0326 | 3.3595e+04 | 0.8872 | -0.87 | 3.6163e+00 | 8.9196 | 1.5277 | 15.000 | 10.1190 | 103.660 | 33.1043 | 1476.66 | 1025.9908 | 6 | 0.0000e+00 |
| 14.124 | 7.0322 | 3.3593e+04 | 0.9098 | -0.86 | 5.0448e+00 | 8.2497 | 1.6978 | 14.000 | 10.1208 | 103.677 | 33.1031 | 1476.64 | 1025.9853 | 5 | 0.0000e+00 |
| 13.115 | 7.0294 | 3.3584e+04 | 0.8479 | -0.86 | 7.2278e+00 | 9.4652 | 1.7004 | 13.000 | 10.1290 | 103.749 | 33.0966 | 1476.61 | 1025.9759 | 5 | 0.0000e+00 |
| 12.106 | 7.0214 | 3.3561e+04 | 0.8950 | -0.85 | 9.7872e+00 | 9.0454 | 1.7122 | 12.000 | 10.1362 | 103.793 | 33.0801 | 1476.54 | 1025.9593 | 4 | 0.0000e+00 |
| 11.097 | 7.0159 | 3.3546e+04 | 0.9795 | -0.84 | 1.3602e+01 | 7.3824 | 1.7112 | 11.000 | 10.1624 | 104.041 | 33.0691 | 1476.48 | 1025.9468 | 5 | 0.0000e+00 |
| 10.088 | 7.0149 | 3.3543e+04 | 0.9510 | -0.83 | 2.0422e+01 | 5.6048 | 1.5537 | 10.000 | 10.1476 | 103.885 | 33.0668 | 1476.46 | 1025.9405 | 4 | 0.0000e+00 |
| 9.079 | 7.0145 | 3.3541e+04 | 0.8323 | -0.83 | 3.2529e+01 | 6.2995 | 1.4543 | 9.000 | 10.1582 | 103.992 | 33.0660 | 1476.44 | 1025.9353 | 4 | 0.0000e+00 |
| 8.070 | 7.0140 | 3.3538e+04 | 0.8556 | -0.82 | 4.8670e+01 | 7.0078 | 1.6028 | 8.000 | 10.1668 | 104.078 | 33.0641 | 1476.42 | 1025.9292 | 5 | 0.0000e+00 |
| 7.062 | 7.0134 | 3.3535e+04 | 0.8341 | -0.81 | 7.1510e+01 | 6.4577 | 1.4850 | 7.000 | 10.1917 | 104.329 | 33.0616 | 1476.40 | 1025.9227 | 6 | 0.0000e+00 |
| 6.053 | 7.0123 | 3.3528e+04 | 0.9091 | -0.80 | 1.0658e+02 | 7.1397 | 1.4416 | 6.000 | 10.1796 | 104.199 | 33.0551 | 1476.37 | 1025.9131 | 6 | 0.0000e+00 |
| 5.044 | 7.0130 | 3.3525e+04 | 1.0648 | -0.80 | 1.6910e+02 | 6.7033 | 1.6163 | 5.000 | 10.1683 | 104.083 | 33.0522 | 1476.36 | 1025.9060 | 5 | 0.0000e+00 |
| 4.035 | 7.0144 | 3.3518e+04 | 0.7810 | -0.78 | 2.3361e+02 | 5.5453 | 1.5046 | 4.000 | 10.1981 | 104.384 | 33.0431 | 1476.33 | 1025.8940 | 5 | 0.0000e+00 |
| 3.026 | 7.0166 | 3.3522e+04 | 0.6680 | -0.76 | 3.8769e+02 | 4.8262 | 1.4236 | 3.000 | 10.2238 | 104.655 | 33.0459 | 1476.33 | 1025.8913 | 5 | 0.0000e+00 |
| 2.017 | 7.0377 | 3.3507e+04 | 0.4731 | -0.72 | 5.9243e+02 | 3.6410 | 1.1729 | 2.000 | 10.2270 | 104.714 | 33.0103 | 1476.35 | 1025.8558 | 8 | 0.0000e+00 |
| 1.009 | 7.0589 | 3.3511e+04 | 9.7476 | -0.83 | 1.6182e+03 | 3.2154 | 1.0148 | 1.000 | 9.7690 | 100.063 | 32.9943 | 1476.39 | 1025.8357 | 9 | 0.0000e+00 |
