CTD Cast Details

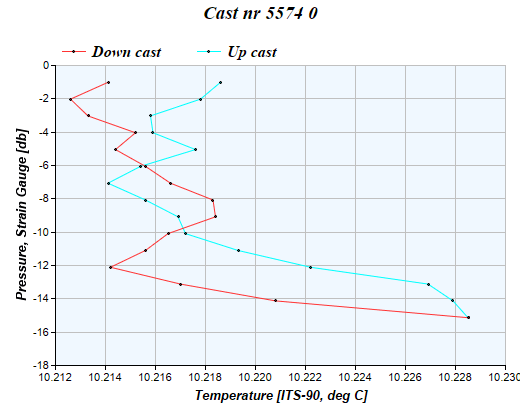

Cast nr 5574 taken on 2020-12-18 at 51°26'5.5", 2°48'29.2"
NOTE:
The CTD casts where processed with Seasoft following the Seabird guidelines for the SBE19 and SBE19plus.
The 'flag' column in the following table is the QC flag for each scan generated during the several processing steps. The scans marked good have a flag of 0.0000e+00. Missing values are marked with -9.990e-29.
Legend
| prdM | Pressure, Strain Gauge [db] |
|---|---|
| t090C | Temperature [ITS-90, deg C] |
| c0uS/cm | Conductivity [uS/cm] |
| obs3+ | OBS, D & A 3plus [NTU] |
| altM | Altimeter [m] |
| par | PAR/Irradiance, Biospherical/Licor |
| flECO-AFL | Fluorescence, WET Labs ECO-AFL/FL [mg/m^3] |
| depSM | Depth [salt water, m], lat |
| sbeox0Mg/L | Oxygen, SBE 43 [mg/l], WS |
| sbeox0PS | Oxygen, SBE 43 [% saturation], WS |
| sal00 | Salinity, Practical [PSU] |
| svCM | Sound Velocity [Chen-Millero, m/s] |
| density00 | Density [density, kg/m^3] |
| nbin | number of scans per bin |
| flag | flag |
Data
| prdM | t090C | c0uS/cm | obs3+ | altM | par | flECO-AFL | depSM | sbeox0Mg/L | sbeox0PS | sal00 | svCM | density00 | nbin | flag |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.009 | 10.2141 | 3.7763e+04 | 38.0220 | 0.46 | 4.7549e-03 | 43.2067 | 1.000 | 8.6010 | 95.420 | 34.4600 | 1489.96 | 1026.4981 | 7 | 0.0000e+00 |
| 2.018 | 10.2126 | 3.7756e+04 | 7.2956 | 0.46 | 4.9562e-03 | 3.5680 | 2.000 | 7.8182 | 86.730 | 34.4538 | 1489.96 | 1026.4981 | 7 | 0.0000e+00 |
| 3.026 | 10.2133 | 3.7765e+04 | 1.9812 | 0.46 | 4.9465e-03 | 6.0726 | 3.000 | 8.1510 | 90.428 | 34.4622 | 1489.99 | 1026.5091 | 8 | 0.0000e+00 |
| 4.035 | 10.2152 | 3.7792e+04 | 2.4987 | 0.46 | 4.7381e-03 | 6.1579 | 4.000 | 9.1297 | 101.306 | 34.4872 | 1490.04 | 1026.5329 | 6 | 0.0000e+00 |
| 5.044 | 10.2144 | 3.7793e+04 | 2.4707 | 0.46 | 4.7422e-03 | 5.8947 | 5.000 | 9.1785 | 101.846 | 34.4887 | 1490.06 | 1026.5388 | 7 | 0.0000e+00 |
| 6.053 | 10.2156 | 3.7795e+04 | 2.4780 | 0.46 | 4.7432e-03 | 6.0493 | 6.000 | 9.1910 | 101.987 | 34.4890 | 1490.08 | 1026.5433 | 6 | 0.0000e+00 |
| 7.062 | 10.2166 | 3.7796e+04 | 2.5989 | 0.46 | 4.7455e-03 | 5.8979 | 7.000 | 9.1863 | 101.938 | 34.4887 | 1490.10 | 1026.5476 | 5 | 0.0000e+00 |
| 8.070 | 10.2183 | 3.7799e+04 | 2.5739 | 0.46 | 4.7566e-03 | 5.7141 | 8.000 | 9.1747 | 101.813 | 34.4896 | 1490.13 | 1026.5525 | 4 | 0.0000e+00 |
| 9.079 | 10.2184 | 3.7800e+04 | 2.5113 | 0.46 | 4.7679e-03 | 5.7262 | 9.000 | 9.1969 | 102.060 | 34.4899 | 1490.14 | 1026.5573 | 6 | 0.0000e+00 |
| 10.088 | 10.2165 | 3.7798e+04 | 2.5377 | 0.46 | 4.7789e-03 | 5.8610 | 10.000 | 9.2116 | 102.219 | 34.4894 | 1490.15 | 1026.5618 | 7 | 0.0000e+00 |
| 11.097 | 10.2156 | 3.7797e+04 | 2.6006 | 0.46 | 4.7796e-03 | 5.9356 | 11.000 | 9.1905 | 101.983 | 34.4889 | 1490.16 | 1026.5661 | 6 | 0.0000e+00 |
| 12.106 | 10.2142 | 3.7796e+04 | 2.6199 | 0.46 | 4.7786e-03 | 6.1215 | 12.000 | 9.2015 | 102.101 | 34.4891 | 1490.17 | 1026.5710 | 4 | 0.0000e+00 |
| 13.115 | 10.2170 | 3.7799e+04 | 2.6317 | 0.46 | 4.7827e-03 | 6.1191 | 13.000 | 9.1986 | 102.075 | 34.4888 | 1490.20 | 1026.5749 | 5 | 0.0000e+00 |
| 14.123 | 10.2208 | 3.7805e+04 | 2.7634 | 0.46 | 4.7934e-03 | 5.8012 | 14.000 | 9.1923 | 102.014 | 34.4904 | 1490.23 | 1026.5800 | 6 | 0.0000e+00 |
| 15.132 | 10.2285 | 3.7816e+04 | 2.9121 | 0.46 | 4.8104e-03 | 6.1352 | 15.000 | 9.2094 | 102.224 | 34.4941 | 1490.28 | 1026.5861 | 12 | 0.0000e+00 |
| 14.123 | 10.2279 | 3.7815e+04 | 2.8512 | 0.46 | 4.8229e-03 | 6.0001 | 14.000 | 9.1990 | 102.107 | 34.4939 | 1490.26 | 1026.5816 | 7 | 0.0000e+00 |
| 13.114 | 10.2269 | 3.7814e+04 | 2.7137 | 0.46 | 4.8205e-03 | 6.1185 | 13.000 | 9.1861 | 101.961 | 34.4941 | 1490.24 | 1026.5774 | 5 | 0.0000e+00 |
| 12.106 | 10.2222 | 3.7807e+04 | 2.7752 | 0.46 | 4.8134e-03 | 5.9268 | 12.000 | 9.2195 | 102.320 | 34.4926 | 1490.21 | 1026.5724 | 9 | 0.0000e+00 |
| 11.097 | 10.2193 | 3.7802e+04 | 2.6362 | 0.46 | 4.8148e-03 | 5.9112 | 11.000 | 9.2002 | 102.099 | 34.4908 | 1490.18 | 1026.5669 | 4 | 0.0000e+00 |
| 10.088 | 10.2172 | 3.7799e+04 | 2.6090 | 0.46 | 4.8114e-03 | 5.9625 | 10.000 | 9.1737 | 101.800 | 34.4897 | 1490.15 | 1026.5619 | 4 | 0.0000e+00 |
| 9.079 | 10.2169 | 3.7798e+04 | 2.5361 | 0.46 | 4.8158e-03 | 5.8301 | 9.000 | 9.1988 | 102.077 | 34.4895 | 1490.14 | 1026.5572 | 9 | 0.0000e+00 |
| 8.070 | 10.2156 | 3.7796e+04 | 2.5577 | 0.46 | 4.8257e-03 | 5.8127 | 8.000 | 9.1985 | 102.071 | 34.4894 | 1490.12 | 1026.5527 | 6 | 0.0000e+00 |
| 7.062 | 10.2141 | 3.7794e+04 | 2.5567 | 0.46 | 4.8306e-03 | 5.9979 | 7.000 | 9.1772 | 101.832 | 34.4889 | 1490.09 | 1026.5481 | 4 | 0.0000e+00 |
| 6.053 | 10.2154 | 3.7794e+04 | 2.5585 | 0.46 | 4.8462e-03 | 5.7942 | 6.000 | 9.1753 | 101.812 | 34.4880 | 1490.08 | 1026.5426 | 7 | 0.0000e+00 |
| 5.044 | 10.2176 | 3.7795e+04 | 2.4418 | 0.46 | 4.8523e-03 | 5.8352 | 5.000 | 9.1627 | 101.677 | 34.4882 | 1490.07 | 1026.5378 | 10 | 0.0000e+00 |
| 4.035 | 10.2159 | 3.7793e+04 | 2.5468 | 0.46 | 4.8623e-03 | 5.8832 | 4.000 | 9.1525 | 101.560 | 34.4882 | 1490.05 | 1026.5336 | 7 | 0.0000e+00 |
| 3.026 | 10.2158 | 3.7792e+04 | 2.5641 | 0.46 | 4.8653e-03 | 6.0035 | 3.000 | 9.1756 | 101.817 | 34.4878 | 1490.03 | 1026.5287 | 10 | 0.0000e+00 |
| 2.018 | 10.2178 | 3.7795e+04 | 2.5396 | 0.46 | 4.9097e-03 | 6.4044 | 2.000 | 9.0451 | 100.374 | 34.4885 | 1490.02 | 1026.5243 | 9 | 0.0000e+00 |
| 1.009 | 10.2186 | 3.7795e+04 | 2.6158 | 0.46 | 4.9137e-03 | 6.5604 | 1.000 | 8.8543 | 98.258 | 34.4883 | 1490.01 | 1026.5194 | 6 | 0.0000e+00 |
