CTD Cast Details

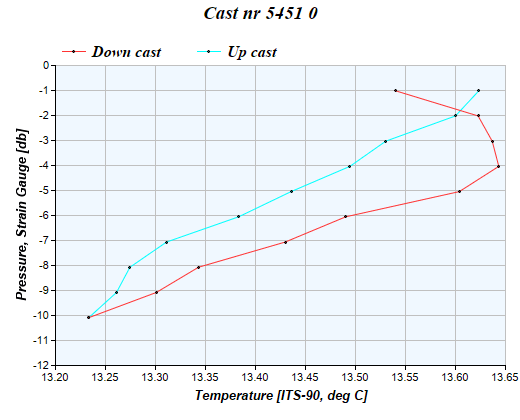

Cast nr 5451 taken on 2020-05-19 at 51°22'34.8", 3°13'4.9"
NOTE:
The CTD casts where processed with Seasoft following the Seabird guidelines for the SBE19 and SBE19plus.
The 'flag' column in the following table is the QC flag for each scan generated during the several processing steps. The scans marked good have a flag of 0.0000e+00. Missing values are marked with -9.990e-29.
Legend
| prdM | Pressure, Strain Gauge [db] |
|---|---|
| t090C | Temperature [ITS-90, deg C] |
| c0uS/cm | Conductivity [uS/cm] |
| obs3+ | OBS, D & A 3plus [NTU] |
| altM | Altimeter [m] |
| par | PAR/Irradiance, Biospherical/Licor |
| flECO-AFL | Fluorescence, WET Labs ECO-AFL/FL [mg/m^3] |
| depSM | Depth [salt water, m], lat |
| sbeox0Mg/L | Oxygen, SBE 43 [mg/l], WS |
| sbeox0PS | Oxygen, SBE 43 [% saturation], WS |
| sal00 | Salinity, Practical [PSU] |
| svCM | Sound Velocity [Chen-Millero, m/s] |
| density00 | Density [density, kg/m^3] |
| nbin | number of scans per bin |
| flag | flag |
Data
| prdM | t090C | c0uS/cm | obs3+ | altM | par | flECO-AFL | depSM | sbeox0Mg/L | sbeox0PS | sal00 | svCM | density00 | nbin | flag |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.009 | 13.5398 | 3.7142e+04 | 17.3599 | 0.01 | 1.0000e-12 | 14.6049 | 1.000 | 8.1423 | 94.762 | 30.9374 | 1497.20 | 1023.1466 | 10 | 0.0000e+00 |
| 2.018 | 13.6226 | 3.7288e+04 | 8.1582 | 0.01 | 1.0000e-12 | 17.0742 | 2.000 | 7.5393 | 87.929 | 31.0051 | 1497.58 | 1023.1870 | 6 | 0.0000e+00 |
| 3.026 | 13.6367 | 3.7024e+04 | 7.5926 | 0.01 | 1.0000e-12 | 16.0250 | 3.000 | 8.9551 | 104.311 | 30.7489 | 1497.34 | 1022.9908 | 9 | 0.0000e+00 |
| 4.035 | 13.6433 | 3.7035e+04 | 7.6526 | 0.01 | 1.0000e-12 | 16.5536 | 4.000 | 8.8621 | 103.243 | 30.7534 | 1497.38 | 1022.9975 | 6 | 0.0000e+00 |
| 5.044 | 13.6038 | 3.7013e+04 | 8.1469 | 0.01 | 1.0000e-12 | 16.0769 | 5.000 | 8.7333 | 101.668 | 30.7651 | 1497.28 | 1023.0190 | 6 | 0.0000e+00 |
| 6.053 | 13.4902 | 3.6925e+04 | 7.9838 | 0.01 | 1.0000e-12 | 16.5158 | 6.000 | 8.6424 | 100.381 | 30.7746 | 1496.93 | 1023.0533 | 6 | 0.0000e+00 |
| 7.062 | 13.4297 | 3.6876e+04 | 8.6532 | 0.01 | 1.0000e-12 | 16.8535 | 7.000 | 8.6069 | 99.846 | 30.7779 | 1496.75 | 1023.0723 | 5 | 0.0000e+00 |
| 8.070 | 13.3430 | 3.6901e+04 | 9.7566 | 0.01 | 1.0000e-12 | 16.4998 | 8.000 | 8.5875 | 99.500 | 30.8706 | 1496.59 | 1023.1656 | 5 | 0.0000e+00 |
| 9.079 | 13.3008 | 3.6945e+04 | 15.0344 | 0.01 | 1.0000e-12 | 18.0814 | 9.000 | 8.5838 | 99.416 | 30.9448 | 1496.55 | 1023.2357 | 9 | 0.0000e+00 |
| 10.088 | 13.2332 | 3.7008e+04 | 86.6689 | 0.01 | 1.0000e-12 | 47.9529 | 10.000 | 8.4606 | 97.921 | 31.0581 | 1496.47 | 1023.3411 | 5 | 0.0000e+00 |
| 9.079 | 13.2610 | 3.6981e+04 | 55.3447 | 0.01 | 1.0000e-12 | 37.9732 | 9.000 | 8.4850 | 98.232 | 31.0111 | 1496.50 | 1023.2947 | 11 | 0.0000e+00 |
| 8.070 | 13.2744 | 3.6970e+04 | 28.8585 | 0.01 | 1.0000e-12 | 35.3129 | 8.000 | 8.5192 | 98.642 | 30.9904 | 1496.50 | 1023.2716 | 5 | 0.0000e+00 |
| 7.062 | 13.3110 | 3.6938e+04 | 16.8287 | 0.01 | 1.0000e-12 | 30.0759 | 7.000 | 8.5289 | 98.794 | 30.9315 | 1496.54 | 1023.2143 | 6 | 0.0000e+00 |
| 6.053 | 13.3831 | 3.6881e+04 | 10.7894 | 0.01 | 1.0000e-12 | 24.2361 | 6.000 | 8.4469 | 97.921 | 30.8198 | 1496.63 | 1023.1094 | 5 | 0.0000e+00 |
| 5.044 | 13.4356 | 3.6873e+04 | 9.0017 | 0.01 | 1.0000e-12 | 20.3677 | 5.000 | 8.3409 | 96.766 | 30.7704 | 1496.73 | 1023.0563 | 5 | 0.0000e+00 |
| 4.035 | 13.4944 | 3.6894e+04 | 8.2019 | 0.01 | 1.0000e-12 | 18.5599 | 4.000 | 8.2561 | 95.883 | 30.7434 | 1496.87 | 1023.0193 | 4 | 0.0000e+00 |
| 3.026 | 13.5303 | 3.6916e+04 | 7.8272 | 0.01 | 1.0000e-12 | 18.2492 | 3.000 | 8.1410 | 94.611 | 30.7348 | 1496.97 | 1023.0010 | 5 | 0.0000e+00 |
| 2.017 | 13.6000 | 3.6943e+04 | 7.9115 | 0.01 | 1.0000e-12 | 17.0135 | 2.000 | 8.1702 | 95.069 | 30.7048 | 1497.15 | 1022.9595 | 5 | 0.0000e+00 |
| 1.009 | 13.6234 | 3.6968e+04 | 10.4359 | 0.01 | 1.0000e-12 | 17.1015 | 1.000 | 8.2170 | 95.662 | 30.7094 | 1497.22 | 1022.9539 | 6 | 0.0000e+00 |
