CTD Cast Details

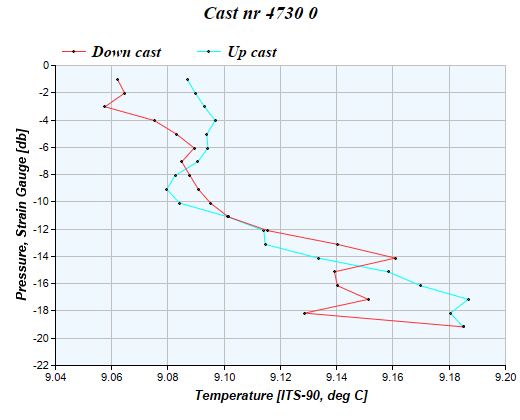

Cast nr 4730 taken on 2018-12-18 at 51°16'39.5", 2°36'40.6"
NOTE:
The CTD casts where processed with Seasoft following the Seabird guidelines for the SBE19 and SBE19plus.
The 'flag' column in the following table is the QC flag for each scan generated during the several processing steps. The scans marked good have a flag of 0.0000e+00. Missing values are marked with -9.990e-29.
Legend
| prdM | Pressure, Strain Gauge [db] |
|---|---|
| t090C | Temperature [ITS-90, deg C] |
| c0uS/cm | Conductivity [uS/cm] |
| obs3+ | OBS, D & A 3plus [NTU] |
| altM | Altimeter [m] |
| par | PAR/Irradiance, Biospherical/Licor |
| flECO-AFL | Fluorescence, WET Labs ECO-AFL/FL [mg/m^3] |
| depSM | Depth [salt water, m], lat |
| sbeox0Mg/L | Oxygen, SBE 43 [mg/l], WS |
| sbeox0PS | Oxygen, SBE 43 [% saturation], WS |
| sal00 | Salinity, Practical [PSU] |
| svCM | Sound Velocity [Chen-Millero, m/s] |
| density00 | Density [density, kg/m^3] |
| nbin | number of scans per bin |
| flag | flag |
Data
| prdM | t090C | c0uS/cm | obs3+ | altM | par | flECO-AFL | depSM | sbeox0Mg/L | sbeox0PS | sal00 | svCM | density00 | nbin | flag |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.009 | 9.0620 | 3.6293e+04 | 3.1500 | 23.13 | 8.1131e-01 | 0.8800 | 1.000 | 9.1920 | 99.176 | 34.0461 | 1485.27 | 1026.3659 | 9 | 0.0000e+00 |
| 2.018 | 9.0646 | 3.6550e+04 | 2.4186 | 22.08 | 4.1953e-01 | 0.9005 | 2.000 | 8.6888 | 93.914 | 34.3116 | 1485.62 | 1026.5779 | 4 | 0.0000e+00 |
| 3.026 | 9.0576 | 3.6490e+04 | 2.2900 | 21.20 | 2.1355e-01 | 0.9572 | 3.000 | 8.5361 | 92.215 | 34.2545 | 1485.54 | 1026.5389 | 8 | 0.0000e+00 |
| 4.035 | 9.0751 | 3.6549e+04 | 2.1542 | 20.13 | 7.1785e-02 | 0.9518 | 4.000 | 8.7874 | 94.997 | 34.2987 | 1485.68 | 1026.5753 | 7 | 0.0000e+00 |
| 5.044 | 9.0831 | 3.6644e+04 | 2.0493 | 19.23 | 3.6111e-02 | 0.9276 | 5.000 | 9.9224 | 107.346 | 34.3898 | 1485.84 | 1026.6499 | 4 | 0.0000e+00 |
| 6.053 | 9.0893 | 3.6650e+04 | 2.0662 | 18.29 | 2.9852e-02 | 0.9160 | 6.000 | 9.8942 | 107.055 | 34.3903 | 1485.88 | 1026.6539 | 6 | 0.0000e+00 |
| 7.061 | 9.0849 | 3.6651e+04 | 2.0613 | 17.27 | 2.8388e-02 | 0.9610 | 7.000 | 9.7825 | 105.840 | 34.3947 | 1485.89 | 1026.6626 | 6 | 0.0000e+00 |
| 8.070 | 9.0878 | 3.6655e+04 | 1.9910 | 16.32 | 2.8666e-02 | 0.8991 | 8.000 | 9.7260 | 105.235 | 34.3953 | 1485.91 | 1026.6672 | 3 | 0.0000e+00 |
| 9.079 | 9.0908 | 3.6658e+04 | 2.0316 | 15.40 | 2.9156e-02 | 0.8754 | 9.000 | 9.7239 | 105.220 | 34.3958 | 1485.94 | 1026.6717 | 3 | 0.0000e+00 |
| 10.088 | 9.0951 | 3.6663e+04 | 2.1487 | 14.41 | 2.9466e-02 | 0.8635 | 10.000 | 9.7337 | 105.336 | 34.3963 | 1485.97 | 1026.6760 | 4 | 0.0000e+00 |
| 11.097 | 9.1014 | 3.6671e+04 | 2.3003 | 13.34 | 2.9516e-02 | 0.8955 | 11.000 | 9.7293 | 105.304 | 34.3981 | 1486.02 | 1026.6810 | 8 | 0.0000e+00 |
| 12.106 | 9.1154 | 3.6685e+04 | 2.2961 | 12.33 | 2.9552e-02 | 0.9000 | 12.000 | 9.6964 | 104.981 | 34.3984 | 1486.09 | 1026.6836 | 3 | 0.0000e+00 |
| 13.114 | 9.1402 | 3.6717e+04 | 2.4007 | 11.35 | 2.9906e-02 | 0.8851 | 13.000 | 9.6920 | 104.997 | 34.4074 | 1486.20 | 1026.6912 | 4 | 0.0000e+00 |
| 14.123 | 9.1608 | 3.6741e+04 | 2.5092 | 10.33 | 3.1343e-02 | 0.8926 | 14.000 | 9.7002 | 105.137 | 34.4122 | 1486.30 | 1026.6962 | 8 | 0.0000e+00 |
| 15.132 | 9.1392 | 3.6722e+04 | 2.5211 | 9.36 | 3.5737e-02 | 0.8534 | 15.000 | 9.7098 | 105.190 | 34.4124 | 1486.24 | 1026.7044 | 5 | 0.0000e+00 |
| 16.141 | 9.1402 | 3.6720e+04 | 2.5308 | 8.42 | 4.0566e-02 | 0.8341 | 16.000 | 9.7073 | 105.164 | 34.4092 | 1486.25 | 1026.7064 | 4 | 0.0000e+00 |
| 17.150 | 9.1512 | 3.6734e+04 | 2.6046 | 7.39 | 4.6244e-02 | 0.8842 | 17.000 | 9.7029 | 105.144 | 34.4129 | 1486.31 | 1026.7121 | 6 | 0.0000e+00 |
| 18.159 | 9.1286 | 3.6710e+04 | 2.5757 | 6.38 | 4.5366e-02 | 0.8821 | 18.000 | 9.7117 | 105.184 | 34.4088 | 1486.24 | 1026.7170 | 7 | 0.0000e+00 |
| 19.167 | 9.1849 | 3.6772e+04 | 2.7545 | 5.31 | 5.1419e-02 | 0.9346 | 19.000 | 9.7044 | 105.242 | 34.4190 | 1486.48 | 1026.7205 | 4 | 0.0000e+00 |
| 18.159 | 9.1804 | 3.6769e+04 | 2.8753 | 6.25 | 5.2520e-02 | 0.9135 | 18.000 | 9.6820 | 104.990 | 34.4204 | 1486.45 | 1026.7178 | 6 | 0.0000e+00 |
| 17.149 | 9.1867 | 3.6775e+04 | 2.7716 | 7.24 | 5.2435e-02 | 0.9503 | 17.000 | 9.6682 | 104.855 | 34.4207 | 1486.46 | 1026.7125 | 5 | 0.0000e+00 |
| 16.141 | 9.1697 | 3.6759e+04 | 2.6649 | 8.22 | 5.2447e-02 | 0.9828 | 16.000 | 9.6604 | 104.732 | 34.4213 | 1486.38 | 1026.7110 | 4 | 0.0000e+00 |
| 15.132 | 9.1583 | 3.6744e+04 | 2.5432 | 9.20 | 5.2680e-02 | 0.9851 | 15.000 | 9.6488 | 104.577 | 34.4173 | 1486.31 | 1026.7052 | 3 | 0.0000e+00 |
| 14.123 | 9.1334 | 3.6718e+04 | 2.3088 | 10.20 | 5.3072e-02 | 0.9553 | 14.000 | 9.6376 | 104.396 | 34.4142 | 1486.20 | 1026.7022 | 5 | 0.0000e+00 |
| 13.114 | 9.1145 | 3.6694e+04 | 2.3267 | 11.22 | 5.3490e-02 | 0.9355 | 13.000 | 9.6007 | 103.950 | 34.4086 | 1486.11 | 1026.6963 | 5 | 0.0000e+00 |
| 12.105 | 9.1141 | 3.6689e+04 | 2.3515 | 12.20 | 5.3918e-02 | 0.9274 | 12.000 | 9.5550 | 103.450 | 34.4035 | 1486.09 | 1026.6878 | 4 | 0.0000e+00 |
| 11.097 | 9.1013 | 3.6682e+04 | 2.1459 | 13.18 | 5.4359e-02 | 0.9087 | 11.000 | 9.5544 | 103.419 | 34.4096 | 1486.03 | 1026.6901 | 3 | 0.0000e+00 |
| 10.088 | 9.0841 | 3.6658e+04 | 2.0391 | 14.22 | 5.4784e-02 | 0.8838 | 10.000 | 9.5579 | 103.412 | 34.4015 | 1485.93 | 1026.6819 | 6 | 0.0000e+00 |
| 9.079 | 9.0796 | 3.6651e+04 | 2.1058 | 15.25 | 5.5395e-02 | 0.8773 | 9.000 | 9.4624 | 102.366 | 34.3988 | 1485.90 | 1026.6759 | 4 | 0.0000e+00 |
| 8.070 | 9.0825 | 3.6651e+04 | 2.1685 | 16.21 | 5.6031e-02 | 0.8963 | 8.000 | 9.3380 | 101.026 | 34.3965 | 1485.89 | 1026.6691 | 4 | 0.0000e+00 |
| 7.061 | 9.0906 | 3.6657e+04 | 2.1771 | 17.17 | 5.6757e-02 | 0.9109 | 7.000 | 9.2471 | 100.060 | 34.3960 | 1485.91 | 1026.6627 | 5 | 0.0000e+00 |
| 6.053 | 9.0942 | 3.6662e+04 | 2.1734 | 18.28 | 5.7712e-02 | 0.8541 | 6.000 | 9.0695 | 98.148 | 34.3981 | 1485.91 | 1026.6592 | 5 | 0.0000e+00 |
| 5.044 | 9.0938 | 3.6662e+04 | 2.1279 | 19.22 | 5.9281e-02 | 0.8708 | 5.000 | 9.0392 | 97.819 | 34.3987 | 1485.89 | 1026.6552 | 6 | 0.0000e+00 |
| 4.035 | 9.0968 | 3.6664e+04 | 2.1149 | 20.34 | 6.7199e-02 | 0.8766 | 4.000 | 9.2394 | 99.992 | 34.3985 | 1485.88 | 1026.6500 | 6 | 0.0000e+00 |
| 3.026 | 9.0930 | 3.6661e+04 | 2.0850 | 21.47 | 1.1438e-01 | 0.9373 | 3.000 | 9.4109 | 101.839 | 34.3989 | 1485.85 | 1026.6463 | 12 | 0.0000e+00 |
| 2.018 | 9.0897 | 3.6659e+04 | 2.0975 | 22.39 | 2.2645e-01 | 0.8741 | 2.000 | 8.9032 | 96.340 | 34.4010 | 1485.83 | 1026.6439 | 6 | 0.0000e+00 |
| 1.009 | 9.0868 | 3.6655e+04 | 4.2112 | 22.88 | 4.6394e-01 | 0.9896 | 1.000 | 8.7944 | 95.155 | 34.3999 | 1485.80 | 1026.6389 | 6 | 0.0000e+00 |
